Wireless Waterproof Borescope: Be Like Bryce

Posted on 23 November 2009 by


tombraider-lips
“Let me get my borescope!”

If you need to poke into an ancient artifact to discover what’s inside, or search through the walls of your great-grandpa’s dusty old house to find his lost will where he left everything to you, or you’re trying to look under the door into the hideout of criminal bomb-makers, what do you need?  Now you don’t have to be Lara Croft, bellowing for her tech geek Bryce.  Nope, you need a borescope!

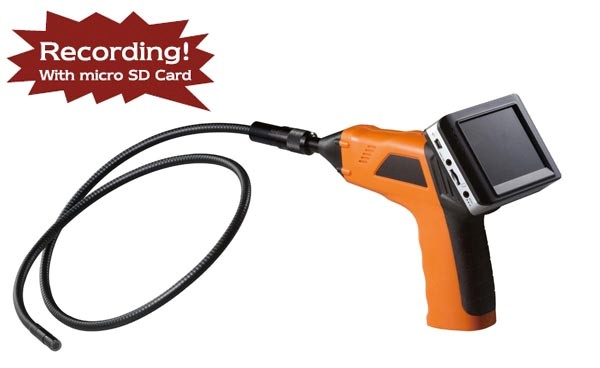

1596_wireless_handheld_borescope2

USBFever is now offering a wireless, waterproof borescope for all your remote viewing needs.  The USBFever ‘scope records on a standard SD card (up to 16 GB), has a color LCD monitor, nightvision via dimmable LCDs, and PAL TV output.  You don’t have to be funded by a major government to get you one; you just need to shell out $337 smackers to the folks at USBFever.  “A little steep,” you say?  Hey, this stuff cost Lara Croft a couple of million pounds 10 years ago; don’t you love modern technological progress?
Full specs and info after the jump.

Introductions:
If you think your grandfather had some treasures behind the wall for you but you do not want to risk demolishing the wall because you are NOT 100% sure.
Then there is a way that can help.

It is waterproof for helping to get the things back no matter it is under the water, inside the depth of a wall or in the air ventilation sytem…

You can even detach the Video out from the borescope to distance monitor and record it in real time.

Features:
- Night Vision: dimmable LEDs to help you to see the things even in a dark environment
- Can be a standalone device for inspection (no need to connect with a computer or a TV.)
- WIRELESS, the LCD monitor (3.5″ TFT) could be detached from the borescope
- REAL TIME RECORDING (built-in SD Slot supports upto 16GB)
- Color LCD Monitor
- Water resistant (IP67) (Camera, LED and the whole Tube, up to Extension Plug)
- Power LED indicator
- Low battery LED indicator
- PAL TV Output in (Video Cable included)

Usages:
- Workshops
- Labortories
- Industrial inspection
- Science education
- Forensics
- Printing
- Textile
- Printed circuit board (PCB) inspection
- Jewelers
- Hobbyists
- Tinkerers
- Crime scene investigation
- Medical
- Serial number identification
- Quality control
- Parts assembly

ItemsSpecifications
CameraImaging SensorCMOS
Total Pizels640 x 480 (PAL)
Horzontal view Angle45 degree
Transmission Frequency2468MHz
Minimum Illumination0 Lux
Modulation TypeFM
Bandwidth18MHz
Power Supply4 AA batteries
Dimensions (WxDxH)186 x 145 x 41 (mm) (Flexible Tube not included)
Weight (approximately)450g
MonitorLCD Screen Type3.5″TFT-LCD
Effective Pixels320 (RGB) x 240
Effective PixelsPAL
Transmission Frequency2414MHz, 2432MHz, 2450MHz, 2468MHz
External Supply Voltage5V (DC)
Consumption Current (Max.)500mA
Video Output Level0.9~1.3V(RP) ~ 75ohm
Dimensions (WxDxH)100 x 70 x 30mm
Weight (Approximately)140g
Operating Temperature-10°C ~ +50° C / +14° F ~ +122°F
Operating Humidity (Max.)15 ~ 85% RH
